INTRODUCTION

Sieger Lithium-ion E2W batteries deliver high energy density, 3,000+ cycles, and advanced BMS protection, ensuring superior performance and safety for electric scooters and motorcycles. Designed for efficiency, they provide a lightweight, cost-effective alternative to lead-acid. Engineered with IoT-ready options for smart monitoring and optimized thermal management, they enable consistent performance in Indian road and weather conditions.

SPECIFICATIONS

Chemistry

NMC

Cell Configuration

18650-Cylindrical

Battery Configuration

16S 11P

Voltage (Minimum)

43.2

Voltage (Nominal)

57.6

Voltage (Maximum)

67.2

Nominal Capacity (Ah)

Standard Char Current (A)

Standard Dis Current (A)

Maximum Dis Current (A)

M Discharge Pulse Current

40A @10sec

Energy (kWh)

1.68

BMS

Hardware 16S 40A

Busbar Material

Nickel

Battery Casing Material

CRCA

Charging Connector

Anderson SB-50

Discharging Connector

Anderson SB-50

Weight (Kg)

15 Kgs (Approx)

Dimensions(LxWxH)in mm

170 x 155 x 241

Charging Temperature

0°C-50°C

Discharging Temperature

-10°C-60°C

IP Rating

IP 65

Cycle Life

1000 Cycles

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Etiam vitae posuere nisl. In dictum luctus arcu, eget feugiat quam varius at. Fusce magna ante, Lorem ipsum dolor sit amet, consectetur adipiscing elit. Etiam vitae posuere nisl. In dictum luctus arcu, eget feugiat quam varius at. Fusce magna ante,

FEATURES

Communication Interface - No
Thermal Runaway Protection - PCM
Safety Features - COV,CUV,OCC,OCD,Short Circuit,Reverse Polarity,Over Temperature

Learn More

Feature #3

Measurable results for you to follow your green journey

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

SPECIFICATIONS

Chemistry

NMC

Cell Configuration

18650-Cylindrical

Battery Configuration

16S 11P

Voltage (Minimum)

43.2

Voltage (Nominal)

57.6

Voltage (Maximum)

67.2

Nominal Capacity (Ah)

Standard Char Current (A)

Standard Dis Current (A)

Maximum Dis Current (A)

M Discharge Pulse Current

40A @10sec

Energy (kWh)

1.68

BMS

Hardware 16S 40A

Busbar Material

Nickel

Battery Casing Material

CRCA

Charging Connector

Anderson SB-50

Discharging Connector

Anderson SB-50

Weight (Kg)

15 Kgs (Approx)

Dimensions(LxWxH)in mm

170 x 155 x 241

Charging Temperature

0°C-50°C

Discharging Temperature

-10°C-60°C

IP Rating

IP 65

Cycle Life

1000 Cycles

FEATURES

Communication Interface - No
Thermal Runaway Protection - PCM
Safety Features - COV,CUV,OCC,OCD,Short Circuit,Reverse Polarity,Over Temperature

Learn More

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

SPECIFICATIONS

Chemistry

NMC

Cell Configuration

18650-Cylindrical

Battery Configuration

14S 11P

Voltage (Minimum)

38.5

Voltage (Nominal)

51.1

Voltage (Maximum)

58.8

Nominal Capacity (Ah)

Standard Char Current (A)

Standard Dis Current (A)

18.5

Maximum Dis Current (A)

M Discharge Pulse Current

45A @10sec

Energy (kWh)

1.99

BMS

Smart 14S 50A

Busbar Material

Nickel

Battery Casing Material

Al 6063(Extrusion)

Charging Connector

Anderson SB-50

Discharging Connector

Anderson SB-50

Weight (Kg)

18 Kgs (Approx)

Dimensions(LxWxH)in mm

188 x 156 x 379

Charging Temperature

0°C-50°C

Discharging Temperature

-10°C-60°C

IP Rating

IP 67

Cycle Life

1000 Cycles

FEATURES

Communication Interface - No
Thermal Runaway Protection - PCM
Safety Features - COV,CUV,OCC,OCD,Short Circuit,Reverse Polarity,Over Temperature

Learn More

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

SPECIFICATIONS

Chemistry

NMC

Cell Configuration

18650-Cylindrical

Battery Configuration

16S 12P

Voltage (Minimum)

Voltage (Nominal)

58.4

Voltage (Maximum)

66.8

Nominal Capacity (Ah)

Standard Char Current (A)

Standard Dis Current (A)

Maximum Dis Current (A)

M Discharge Pulse Current

45A @10sec

Energy (kWh)

1.81

BMS

Hardware 16S 40A

Busbar Material

Nickel

Battery Casing Material

CRCA

Charging Connector

D Tap 2+4

Discharging Connector

D Tap 2+4

Weight (Kg)

18 Kgs (Approx)

Dimensions(LxWxH)in mm

231 x 170 x 306

Charging Temperature

0°C-50°C

Discharging Temperature

-10°C-60°C

IP Rating

IP 65

Cycle Life

1000 Cycles

FEATURES

Communication Interface - CAN
Thermal Runaway Protection - PCM
Safety Features - COV,CUV,OCC,OCD,Short Circuit,Reverse Polarity,Over Temperature

Learn More

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

SPECIFICATIONS

Chemistry

NMC

Cell Configuration

18650-Cylindrical

Battery Configuration

16S 14P

Voltage (Minimum)

44.5

Voltage (Nominal)

58.4

Voltage (Maximum)

66.8

Nominal Capacity (Ah)

Standard Char Current (A)

Standard Dis Current (A)

Maximum Dis Current (A)

M Discharge Pulse Current

45A @10sec

Energy (kWh)

2.1

BMS

Smart 16S 50A

Busbar Material

Nickel

Battery Casing Material

CRCA E

Charging Connector

D tap 2+4

Discharging Connector

D tap 2+4

Weight (Kg)

19.5 Kgs (Approx)

Dimensions(LxWxH)in mm

237 x 170 x 304

Charging Temperature

0°C-50°C

Discharging Temperature

-10°C-60°C

IP Rating

IP 65

Cycle Life

1000 Cycles

FEATURES

Communication Interface - CAN
Thermal Runaway Protection - PCM
Safety Features - COV,CUV,OCC,OCD,Short Circuit,Reverse Polarity,Over Temperature

Learn More

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

SPECIFICATIONS

Chemistry

NMC

Cell Configuration

18650-Cylindrical

Battery Configuration

13S 11P

Voltage (Minimum)

35.75

Voltage (Nominal)

47.45

Voltage (Maximum)

54.6

Nominal Capacity (Ah)

28.6

Standard Char Current (A)

Standard Dis Current (A)

Maximum Dis Current (A)

M Discharge Pulse Current

40A @10sec

Energy (kWh)

1.68

BMS

Hardware 16S 40A

Busbar Material

Nickel

Battery Casing Material

CRCA

Charging Connector

Anderson SB-50

Discharging Connector

Anderson SB-50

Weight (Kg)

15 Kgs (Approx)

Dimensions(LxWxH)in mm

170 x 155 x 241

Charging Temperature

0°C-50°C

Discharging Temperature

-10°C-60°C

IP Rating

IP 65

Cycle Life

1000 Cycles

FEATURES

Communication Interface - No
Thermal Runaway Protection - PCM
Safety Features - COV,CUV,OCC,OCD,Short Circuit,Reverse Polarity,Over Temperature

Learn More

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

SPECIFICATIONS

Chemistry

NMC

Cell Configuration

18650-Cylindrical

Battery Configuration

16S 11P

Voltage (Minimum)

35.75

Voltage (Nominal)

47.45

Voltage (Maximum)

54.6

Nominal Capacity (Ah)

28.6

Standard Char Current (A)

Standard Dis Current (A)

Maximum Dis Current (A)

M Discharge Pulse Current

40A @10sec

Energy (kWh)

1.35

BMS

Hardware 13S 50A

Busbar Material

Nickel

Battery Casing Material

CRCA

Charging Connector

Anderson SB-50

Discharging Connector

Anderson SB-50

Weight (Kg)

9 Kgs (Approx)

Dimensions(LxWxH)in mm

188 x 155 x 241

Charging Temperature

0°C-50°C

Discharging Temperature

-10°C-60°C

IP Rating

IP 65

Cycle Life

1000 Cycles

FEATURES

Communication Interface - No
Thermal Runaway Protection - PCM
Safety Features - COV,CUV,OCC,OCD,Short Circuit,Reverse Polarity,Over Temperature

Learn More

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

SPECIFICATIONS

Chemistry

LFP

Cell Configuration

Prismatic

Battery Configuration

16S 1P

Voltage (Minimum)

40.6

Voltage (Nominal)

51.2

Voltage (Maximum)

57.6

Nominal Capacity (Ah)

Standard Char Current (A)

Standard Dis Current (A)

Maximum Dis Current (A)

M Discharge Pulse Current

40A @10sec

Energy (kWh)

1.53

BMS

Hardware 16S 40A

Busbar Material

Copper

Battery Casing Material

CRCA

Charging Connector

Amphenol 2+6

Discharging Connector

Amphenol 2+6

Weight (Kg)

15 Kgs (Approx)

Dimensions(LxWxH)in mm

160 x 179 x 277

Charging Temperature

0°C-50°C

Discharging Temperature

-10°C-60°C

IP Rating

IP 65

Cycle Life

1000 Cycles

FEATURES

Communication Interface - CAN
Thermal Runaway Protection - PCM
Safety Features - COV,CUV,OCC,OCD,Short Circuit,Reverse Polarity,Over Temperature

Learn More

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

SPECIFICATIONS

Chemistry

LFP

Cell Configuration

32140-Cylindrical

Battery Configuration

16S 3P

Voltage (Minimum)

Voltage (Nominal)

51.2

Voltage (Maximum)

57.6

Nominal Capacity (Ah)

Standard Char Current (A)

Standard Dis Current (A)

22.5

Maximum Dis Current (A)

M Discharge Pulse Current

55A @10sec

Energy (kWh)

2.23

BMS

Smart 16S 50A

Busbar Material

Nickel

Battery Casing Material

CRCA

Charging Connector

Anderson SBS75X

Discharging Connector

Anderson SBS75X

Weight (Kg)

21 Kgs (Approx)

Dimensions(LxWxH)in mm

260 x 192 x 369

Charging Temperature

0°C-50°C

Discharging Temperature

-10°C-60°C

IP Rating

IP 65

Cycle Life

2000 Cycles

FEATURES

Communication Interface - CAN
Thermal Runaway Protection - PCM
Safety Features - COV,CUV,OCC,OCD,Short Circuit,Reverse Polarity,Over Temperature

Learn More

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

SPECIFICATIONS

Chemistry

NMC

Cell Configuration

18650-Cylindrical

Battery Configuration

16S 11P

Voltage (Minimum)

43.2

Voltage (Nominal)

57.6

Voltage (Maximum)

67.2

Nominal Capacity (Ah)

Standard Char Current (A)

Standard Dis Current (A)

Maximum Dis Current (A)

M Discharge Pulse Current

40A @10sec

Energy (kWh)

1.68

BMS

Hardware 16S 40A

Busbar Material

Nickel

Battery Casing Material

CRCA

Charging Connector

Anderson SB-50

Discharging Connector

Anderson SB-50

Weight (Kg)

15 Kgs (Approx)

Dimensions(LxWxH)in mm

170 x 155 x 241

Charging Temperature

0°C-50°C

Discharging Temperature

-10°C-60°C

IP Rating

IP 65

Cycle Life

1000 Cycles

FEATURES

Communication Interface - No
Thermal Runaway Protection - PCM
Safety Features - COV,CUV,OCC,OCD,Short Circuit,Reverse Polarity,Over Temperature

Learn More

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

SPECIFICATIONS

Chemistry

LFP

Cell Configuration

32140-Cylindrical

Battery Configuration

24S 3P

Voltage (Minimum)

Voltage (Nominal)

76.8

Voltage (Maximum)

86.4

Nominal Capacity (Ah)

Standard Char Current (A)

Standard Dis Current (A)

22.5

Maximum Dis Current (A)

M Discharge Pulse Current

55A @10sec

Energy (kWh)

3.45

BMS

JBD 24S 50A

Busbar Material

Nickel

Battery Casing Material

CRCA

Charging Connector

D Tap 2+6

Discharging Connector

D Tap 2+6

Weight (Kg)

25 Kgs (Approx)

Dimensions(LxWxH)in mm

265 x 264 x 350

Charging Temperature

0°C-50°C

Discharging Temperature

-10°C-60°C

IP Rating

IP 67

Cycle Life

1000 Cycles

FEATURES

Communication Interface - CAN
Thermal Runaway Protection - PCM
Safety Features - COV,CUV,OCC,OCD,Short Circuit,Reverse Polarity,Over Temperature

Learn More

Feature #1

Growing in healthy and sustainable way

Nulla consequat massa quis enim. Morbi vestibulum volutpat enim. Pellentesque auctor neque nec urna. In hac habitasse platea dictumst. Maecenas egestas arcu.

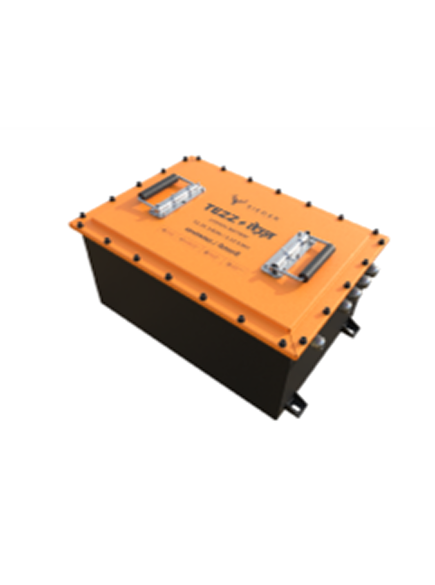

Tezz

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

Sieger Lithium-ion E3W batteries deliver high energy density, 3,000+ cycles, and advanced BMS protection, ensuring superior performance and safety for electric scooters and motorcycles. Designed for efficiency, they provide a lightweight, cost-effective alternative to lead-acid. Engineered with IoT-ready options for smart monitoring and optimized thermal management, they enable consistent performance in Indian road and weather conditions.

SPECIFICATIONS

Chemistry

LFP

Cell Configuration

Prismatic

Battery Configuration

16S 1P

Voltage (Minimum)

Voltage (Nominal)

51.2

Voltage (Maximum)

57.6

Nominal Capacity (Ah)

100

Standard Char Current (A)

Standard Dis Current (A)

Maximum Dis Current (A)

M Discharge Pulse Current

100A @10sec

Energy (kWh)

5.1

BMS

Smart 16S 80A

Busbar Material

NickCopper & Al el

Battery Casing Material

CRCA Enclosure

Charging Connector

Anderson SB-50

Discharging Connector

Anderson SB-50

Weight (Kg)

52.5 Kgs (Approx)

Dimensions(LxWxH)in mm

490 x 321 x 310

Charging Temperature

5°C-50°C

Discharging Temperature

-10°C-60°C

IP Rating

IP 67

Cycle Life

2000 Cycles

FEATURES

Communication Interface - No
Thermal Runaway Protection - No
Safety Features - COV,CUV,OCC,OCD,Short Circuit,Reverse Polarity,Over Temperature

Learn More

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

SPECIFICATIONS

Chemistry

LFP

Cell Configuration

Prismatic

Battery Configuration

16S 2P

Voltage (Minimum)

Voltage (Nominal)

51.2

Voltage (Maximum)

57.6

Nominal Capacity (Ah)

200

Standard Char Current (A)

Standard Dis Current (A)

100

Maximum Dis Current (A)

150

M Discharge Pulse Current

200A @10sec

Energy (kWh)

10.2

BMS

Smart 16S200A

Busbar Material

Copper Busbar

Battery Casing Material

CRCA

Charging Connector

Johnon 250A 2 Pole connector

Discharging Connector

Johnon 250A 2 Pole connector

Weight (Kg)

110 Kgs (Approx)

Dimensions(LxWxH)in mm

490 x 421 x 310

Charging Temperature

5°C-50°C

Discharging Temperature

-10°C-60°C

IP Rating

IP 67

Cycle Life

2000 Cycles

FEATURES

Communication Interface - No
Thermal Runaway Protection - No
Safety Features - COV,CUV,OCC,OCD,Short Circuit,Reverse Polarity,Over Temperature

Learn More

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

SPECIFICATIONS

Chemistry

LFP

Cell Configuration

Prismatic

Battery Configuration

16S 12P

Voltage (Minimum)

Voltage (Nominal)

51.2

Voltage (Maximum)

57.6

Nominal Capacity (Ah)

200

Standard Char Current (A)

Standard Dis Current (A)

100

Maximum Char Current (A)

200

Maximum Dis Current (A)

150

M Discharge Pulse Current

200A @10sec

Energy (kWh)

10.2

BMS

Smart 16S200A

Busbar Material

Copper Busbar

Battery Casing Material

CRCA

Charging Connector

Johnon 250A 2 Pole connector

Discharging Connector

Johnon 250A 2 Pole connector

Weight (Kg)

110 Kgs (Approx)

Dimensions(LxWxH)in mm

490 x 421 x 310

Charging Temperature

5°C-50°C

Discharging Temperature

-10°C-60°C

IP Rating

IP 67

Cycle Life

2000 Cycles

FEATURES

Communication Interface - No
Thermal Runaway Protection - PCM
Safety Features - COV,CUV,OCC,OCD,Short Circuit,Reverse Polarity,Over Temperature
Cooling Technologies - Immersion Cooling with Active Liquid Circulation

Learn More

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

SPECIFICATIONS

Chemistry

NMC

Cell Configuration

18650-Cylindrical

Battery Configuration

16S 11P

Voltage (Minimum)

43.2

Voltage (Nominal)

57.6

Voltage (Maximum)

67.2

Nominal Capacity (Ah)

Standard Char Current (A)

Standard Dis Current (A)

Maximum Dis Current (A)

M Discharge Pulse Current

40A @10sec

Energy (kWh)

1.68

BMS

Hardware 16S 40A

Busbar Material

Nickel

Battery Casing Material

CRCA

Charging Connector

Anderson SB-50

Discharging Connector

Anderson SB-50

Weight (Kg)

15 Kgs (Approx)

Dimensions(LxWxH)in mm

170 x 155 x 241

Charging Temperature

0°C-50°C

Discharging Temperature

-10°C-60°C

IP Rating

IP 65

Cycle Life

1000 Cycles

FEATURES

Communication Interface - No
Thermal Runaway Protection - PCM
Safety Features - COV,CUV,OCC,OCD,Short Circuit,Reverse Polarity,Over Temperature

Learn More

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

SPECIFICATIONS

Chemistry

NMC

Cell Configuration

18650-Cylindrical

Battery Configuration

16S 11P

Voltage (Minimum)

43.2

Voltage (Nominal)

57.6

Voltage (Maximum)

67.2

Nominal Capacity (Ah)

Standard Char Current (A)

Standard Dis Current (A)

Maximum Dis Current (A)

M Discharge Pulse Current

40A @10sec

Energy (kWh)

1.68

BMS

Hardware 16S 40A

Busbar Material

Nickel

Battery Casing Material

CRCA

Charging Connector

Anderson SB-50

Discharging Connector

Anderson SB-50

Weight (Kg)

15 Kgs (Approx)

Dimensions(LxWxH)in mm

170 x 155 x 241

Charging Temperature

0°C-50°C

Discharging Temperature

-10°C-60°C

IP Rating

IP 65

Cycle Life

1000 Cycles

FEATURES

Communication Interface - No
Thermal Runaway Protection - PCM
Safety Features - COV,CUV,OCC,OCD,Short Circuit,Reverse Polarity,Over Temperature

Learn More

Feature #2

Reasonable points to follow instead of buzzwords

Nulla consequat massa quis enim. Morbi vestibulum volutpat enim. Pellentesque auctor neque nec urna. In hac habitasse platea dictumst. Maecenas egestas arcu.

Spectra

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

CELL SPECIFICATIONS

Chemistry

NMC

Cell Configuration

Cylindrical(18650)

Battery Configuration

10S 2P

Voltage (Minimum)

2.9

Voltage (Nominal)

3.6

Voltage (Maximum)

4.2

Impedance (mΩ @1kHz)

<0.5

Cell Form Factor

Cylindrical(18650)

Life Cycles

>1000 Cycles @0.5C @20°C

MODULE SPECIFICATIONS

Voltage (Minimum)

10S 2P

Voltage (Nominal)

Cylindrical(18650)

Voltage (Maximum)

10S 2P

Nominal Capacity (Ah)

2.9

Maximum Continous Discharge Current (A)

5.2

Charge connector

DC 2.1/ DC 2.5/ 3 PIN

Discharge connector

Self made 4 PIN

Charge Temperature

5°C - 50°C

Discharge Temperature

0°C - 60°C

Communication Type

BMS SPECIFICATIONS

BMS Type - 10S15A Hardware BMS
Communication Interface - NA
Temperature sensors - Yes
Bluetooth - NA

FEATURES

Protections - Short Circuit, Overheating
Weight - 5kh
Dimensions (LxWXH) - 353X88X93
Cooling - NA
IP Rating - IP65
Enclosure Type - ABS Plastic
Enclosure colour - Black

Learn More

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

CELL SPECIFICATIONS

Chemistry

NMC

Cell Configuration

Cylindrical(18650)

Battery Configuration

10S 2P

Voltage (Minimum)

2.9

Voltage (Nominal)

3.6

Voltage (Maximum)

4.2

Standard Dis Current

2.6

Max Continous Dis Current

2.6

Standard Charge Current

1.3

Impedance (mΩ @1kHz)

<0.5

Cell Form Factor

Cylindrical(18650)

Life Cycles

>1000 Cycles @0.5C @20°C

MODULE SPECIFICATIONS

Voltage (Minimum)

29.00

Voltage (Nominal)

36.00

Voltage (Maximum)

42.00

Nominal Capacity (Ah)

7.8

Energy (kWhr)

0.28

Maximum Continous Discharge Current (A)

7.8

Standard Charge Current

3.9

Charge connector

DC 2.1/ DC 2.5/ 3 PIN

Discharge connector

Self made 4 PIN

Charge Temperature

5°C - 50°C

Discharge Temperature

0°C - 60°C

Charging Method

CCCV

Communication Type

BMS SPECIFICATIONS

BMS Type - 10S 15A Hardware BMS
Communication Interface - NA
Temperature sensors - Yes
Bluetooth - NA

FEATURES

Protections - Short Circuit, Overheating
Weight - 5kg
Dimensions (LxWXH) - 353X88X93
Cooling - NA
IP Rating - IP65
Enclosure Type - ABS Plastic
Enclosure colour - Black

Learn More

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

CELL SPECIFICATIONS

Chemistry

NMC

Cell Configuration

Cylindrical(18650)

Battery Configuration

10S 4P

Voltage (Minimum)

2.9

Voltage (Nominal)

3.6

Voltage (Maximum)

4.2

Standard Dis Current

2.6

Max Continous Dis Current

2.6

Standard Charge Current

1.3

Impedance (mΩ @1kHz)

<0.5

Cell Form Factor

Cylindrical(18650)

Life Cycles

>1000 Cycles @0.5C @20°C

MODULE SPECIFICATIONS

Voltage (Minimum)

29.00

Voltage (Nominal)

36.00

Voltage (Maximum)

42.00

Nominal Capacity (Ah)

7.8

Energy (kWhr)

0.28

Maximum Continous Discharge Current (A)

7.8

Standard Charge Current

3.9

Charge connector

DC 2.1/ DC 2.5/ 3 PIN

Discharge connector

Self made 4 PIN

Charge Temperature

5°C - 50°C

Discharge Temperature

0°C - 60°C

Charging Method

CCCV

Communication Type

BMS SPECIFICATIONS

BMS Type - 10S 15A Hardware BMS
Communication Interface - NA
Temperature sensors - Yes
Bluetooth - NA

FEATURES

Protections - Short Circuit, Overheating
Weight - 5kg
Dimensions (LxWXH) - 353X88X93
Cooling - NA
IP Rating - IP65
Enclosure Type - ABS Plastic
Enclosure colour - Black

Learn More

Feature #3

Measurable results for you to follow your green journey

INTRODUCTION

CELL SPECIFICATIONS

Chemistry

NMC

Cell Configuration

Cylindrical(18650)

Battery Configuration

10S 2P

Voltage (Minimum)

2.9

Voltage (Nominal)

3.6

Voltage (Maximum)

4.2

Standard Dis Current

2.6

Max Continous Dis Current

2.6

Standard Charge Current

1.3

Impedance (mΩ @1kHz)

<0.5

Cell Form Factor

Cylindrical(18650)

Life Cycles

>1000 Cycles @0.5C @20°C

MODULE SPECIFICATIONS

Voltage (Minimum)

29.00

Voltage (Nominal)

36.00

Voltage (Maximum)

42.00

Nominal Capacity (Ah)

7.8

Energy (kWhr)

0.28

Maximum Continous Discharge Current (A)

7.8

Standard Charge Current

3.9

Charge connector

DC 2.1/ DC 2.5/ 3 PIN

Discharge connector

Self made 4 PIN

Charge Temperature

5°C - 50°C

Discharge Temperature

0°C - 60°C

Charging Method

CCCV

Communication Type

BMS SPECIFICATIONS

BMS Type - 10S 15A Hardware BMS
Communication Interface - NA
Temperature sensors - Yes
Bluetooth - NA

FEATURES

Protections - Short Circuit, Overheating
Weight - 5kg
Dimensions (LxWXH) - 353X88X93
Cooling - NA
IP Rating - IP65
Enclosure Type - ABS Plastic
Enclosure colour - Black

Learn More

Feature #3

Measurable results for you to follow your green journey

Nulla consequat massa quis enim. Morbi vestibulum volutpat enim. Pellentesque auctor neque nec urna. In hac habitasse platea dictumst. Maecenas egestas arcu.

Empowering change, one electric vehicle at a time

Helping you grow green way

Stellar feature

This is cool too

But then you can do this

This will also help

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Growing in healthy and sustainable way

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Reasonable points to follow instead of buzzwords

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey

Measurable results for you to follow your green journey
